Clearance Bars - Heavy Duty Free Standing

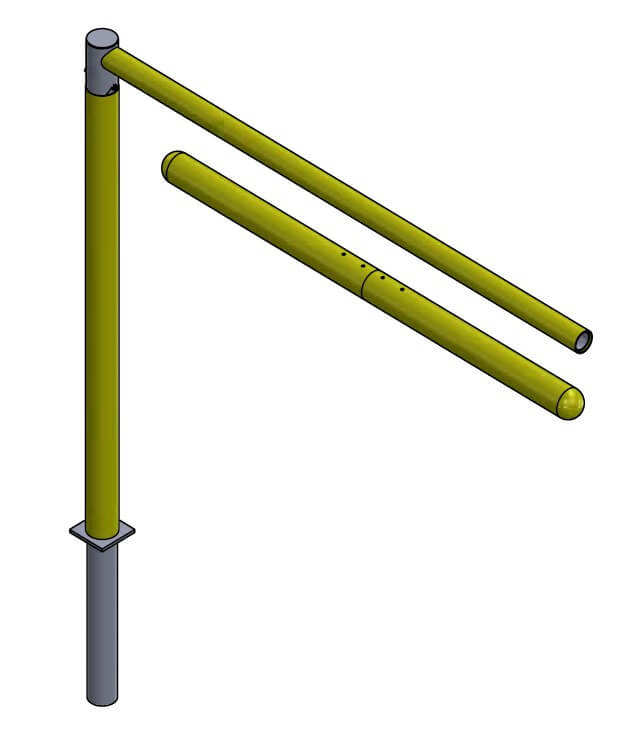

The Heavy Duty Free Standing Clearance Bar System

is a self-supporting clearance bar.

• The Heavy Duty Free Standing Clearance Bar System can be built with up to a 12' width
• Available in heights up to 15' to the top of the horizontal support bar.
• The base bollard is 6" diameter pipe.
• The system must be core buried.  If you seek a surface mounted clearance bar system, click here.
• The product only comes in yellow, except the clearance bar, which can be one of several colors.

Click below for a quote on the HEAVY DUTY FREE STANDING CLEARANCE BAR SYSTEM.

Considerations When Ordering

The standard depth for a buried bollard should be at least 24" or to your area's frostline.  The depth should extend below the frost line in your location. It is 42" for Michigan. If the concrete you set the bollard in goes below the frost line, the bollard can be shorter.

A clearance bar (made of 1/4" Lo-Density Thermoplastic Polyethylene (LDPE) with Ultra-Violet and Anti-Static Additive). The bar is 7.25" OD.

The chain to hang the clearance bar is not included. You should get support chain that is at least 12". So the maximum height to the bottom of the clearance bar will be 1.25 + 5.25+ 12 (including hooks) or 18.5" below the stated height of the system. There must be at least a 12" chain to avoid damage if the bar is hit.

Measurements

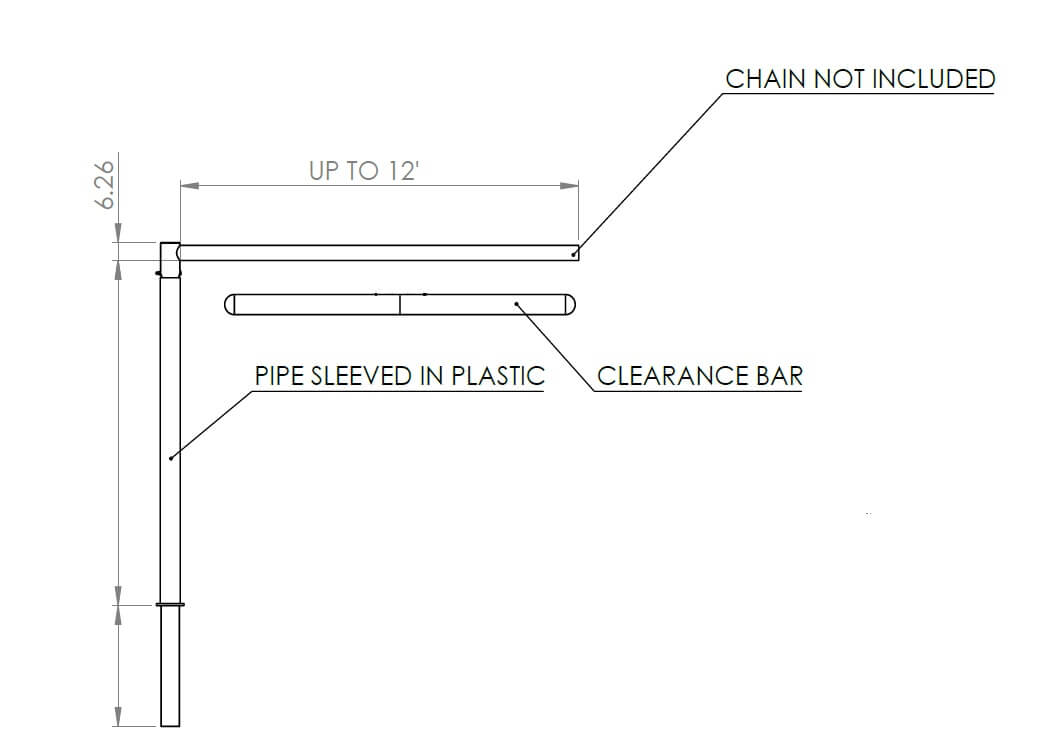

CLICK HERE to open the Heavy Duty Free Standing Clearance Bar System drawing.  Please note that the drawing includes a breakaway option, which is not available at this time.

Fixed System

The Heavy Duty Clearance Bar System only comes as a fixed system.  There is no breakaway or swing-back arm feature.

Size

All systems are 12 feet wide or less, and between 10 and 15 feet high to the top of the support bar.  The bottom of the clearance bar should be at least 12-18" lower.  You can adjust it at your site.  Chain is not included.

Colors

The bollard pipe and other steel support bar only come in yellow.  The clearance bar can be ordered in one of several colors or custom colors for a fee.

Pricing

Price depends on the width and height of the system and other features available.  These options are your choice.  Pricing typically ranges from $1,400 to $1,600 for the clearance bar system.  Lettering decals cost $29.00 for a set of letters and/or numbers that would be applied to the bar before it ships to you.  Please note that pricing is dependent on the current steel industry prices.

Shipping Fees

Shipping normally ranges from $600 to $900 or more per unit, depending upon size and mileage.

Shipping/Delivery

The Heavy Duty Free Standing Clearance Bar System is delivered by truck on a pallet weighing around 350 lbs. for the 10' x 10' system. The vertical upright is welded to the bollard, so the vertical portion is one piece. The horizontal support bar, angle support, and clearance bar are shipped separately and are assembled on site.  Chain is not included.

Receiving Notice

Note that you will be responsible for unloading.  A forklift is required.  The pallets for this product are often too long for a lift gate truck.  This can be discussed at the time of your quote or order.

Call if you have any questions.
