Custom Stainless Steel Bollard Covers for Bollards

Traffic Protectors has 6 & 8 in. diameter covers in stock shown below. They are type 316 Stainless Steel with dome tops.

If you need something different, scroll down to our made-to-order SS bollard covers. We can make almost anything you need.

IN STOCK

Traffic Protectors is a nationwide distributor in the United States for Reliance Foundry, a Canadian company. Their 6" and 8" SS bollard covers, shown in the chart above, are in stock and ship quickly. All are dome top, #6 satin finish, type 316 stainless steel which resists corrosion better than other types. All products ship on a pallet.

Click the link to go to the product page.

R-7301 or R-7301-EX for the 6" diameter

R-7305 or R-7305-EX for the 8" diameter.

If you need something different or have a longer lead time, see below.

MADE -TO-ORDER BOLLARD COVERS

Our made-to-order SS bollard covers come in flat, dome and slant tops, #4 brushed finish (#6 is an option), type 304 or 316 stainless steel, and attach by 4 set screws near the bottom.

Sizes and types of made-to-order stainless steel bollard covers

Size: 4" to 18" in diameter of any height
Wall thickness is normally Schedule 10
Top: Dome, Flat, Slant
Stainless type: either 304 or 316. 316 is maritime grade and resists salt and sea water. 316 is more expensive.
Surface: Typically #4 brushed
Attach by: 4 set screws standard
Optional: spacer ring inside cover for stabilization

LEAD TIME
Lead time from order until delivery is stated on our quotes and invoice as an estimate. Often, bollards and bollard covers are one of the last products purchased and installed for a project. We recommend that you consider purchasing them sooner. If there is a delay, it can cause a delay in getting paid for your work and may invoke penalties.

SEND A QUOTE REQUEST

Send us a Made-to-Order Quote Request with your specific requirements or call us at 877.392.5766. We normally have the quote back within 1 - 2 business days.

Pictures of some of our stainless steel bollards and cover installations

SLANT TOP COVERS IN WEST HOLLYWOOD, CA	vvv	FLAT TOP COVERS IN GEORGIA
---
RECTANGULAR COVERS FOR AN OFFICE BUILDING		SLANT TOP COVERS AT A FEDERAL RESERVE BANK
---

Considerations when ordering stainless steel bollard covers

304 or 316 Stainless Steel

Stainless steel is made in two types: 304 and 316. If you live near saltwater or where salt is used in the winter, we strongly recommend 316 stainless steel. It is made with molybdenum, which changes it to Marine Grade Stainless. It resists corrosion much better than 304. If you are installing your bollard underground, which is the case with most removable bollards and buried bollards, we strongly recommend considering type 316. The elements and moisture underground can often lead to quicker corrosion.

If no salt is present and you are using a plate bollard or bollard cover, you may use 304. It is less expensive.

PLEASE NOTE: EVEN TYPE 316 WILL RUST IF SALT IS PRESENT

We recommend applying this product on installation and periodically when rust appears. Brush on; wait 15 minutes; hose off. 1 gallon cleans 250sf, or about 40 8" x 36" bollards.

CitiSurf 2310 at the Rust Store

Wall Thickness

Normally our stainless steel covers are made of Schedule 10 steel. The specs are shown in this chart.

Nom. Diameter

***

OD (inches)

***

ID (inches)

***

Wall (inches)

***

Lb/ft

4.500

4.260

0.120

5.61

6.625

6.357

0.134

9.29

8.625

8.329

0.148

13.40

10"

10.750

10.42

0.165

18.65

12"

12.750

12.390

0.180

24.17

Sizing

Most bollards being covered are made of steel pipe in nominal ANSI sizes of 4", 6", 8" or 10" which we cover with the next even size up. So a 4" is covered by a 6" for example.

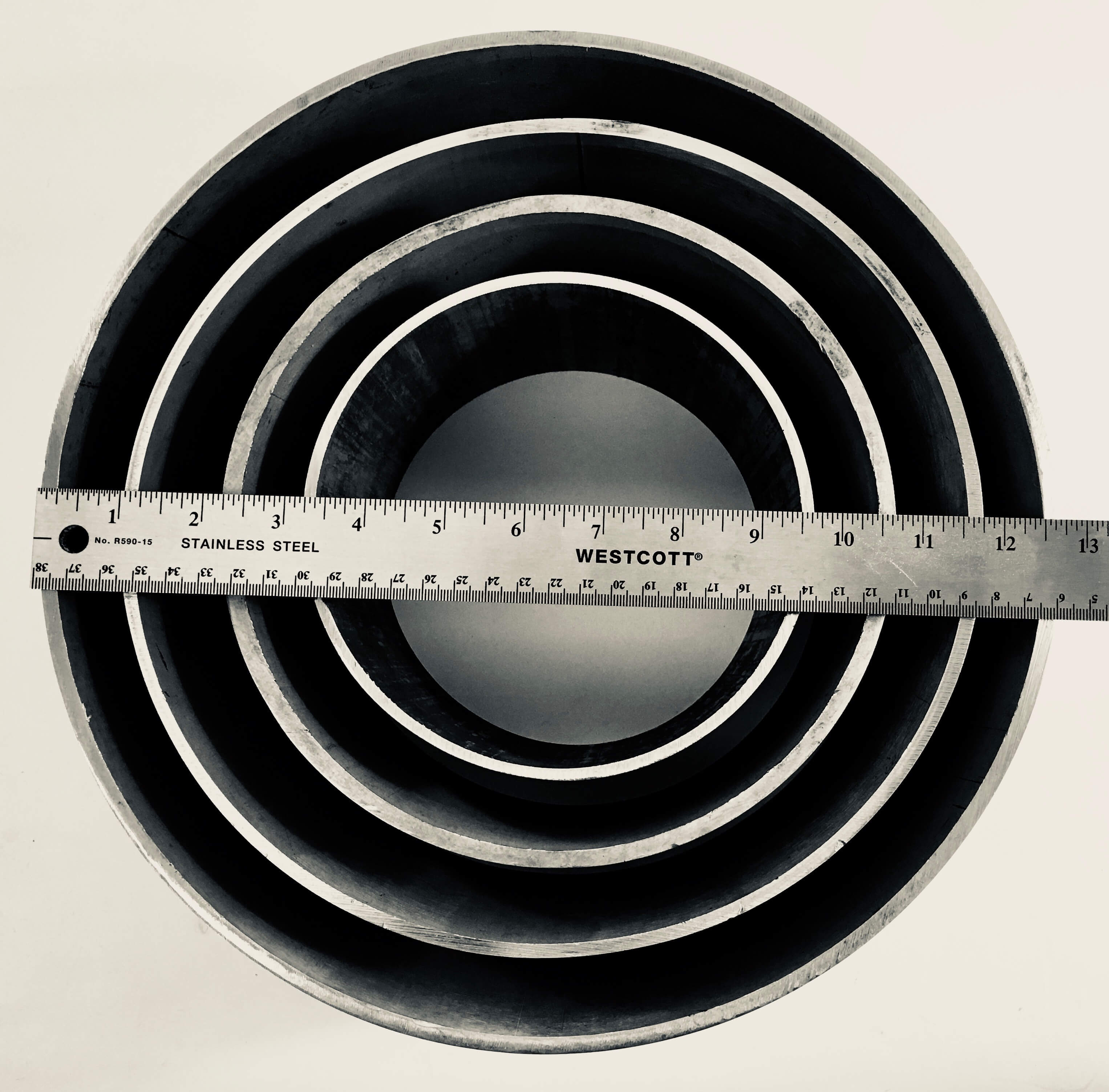

This picture shows the sizes of 6", 8", 10" and 12" we normally use. If you need something different, we can make them in other sizes.

Brushed or Mirror Finish

The finish on stainless steel bollards is almost always a #4 brush finish. After the bollard cover is made, it is polished. A brush finish can be made fairly quickly, while a mirrored finish takes much longer. Consequently, it costs much more. Brushed also looks better longer. We recommend the #4 brush finish as shown here.

Flat, Dome or Slanted Top

There are three top styles offered. Flat top bollards invite sitting, birds (and their gifts), and empty bottles. We recommend either a dome or 30°or 45° slant top instead, as they discourage other uses.

Installation

To install, you slide the bollard cover over your steel bollard. Our covers are attached to the bollard by 4 set screws at the bottom. The set screws are about 1" long if you cover a regular steel pipe with the next even size up. We offer an optional spacer ring that is welded to the inside of the cover near the top to help close the gap between the underlying bollard and the cover. The spacer ring provides extra stability in the event the cover is knocked after installation.
