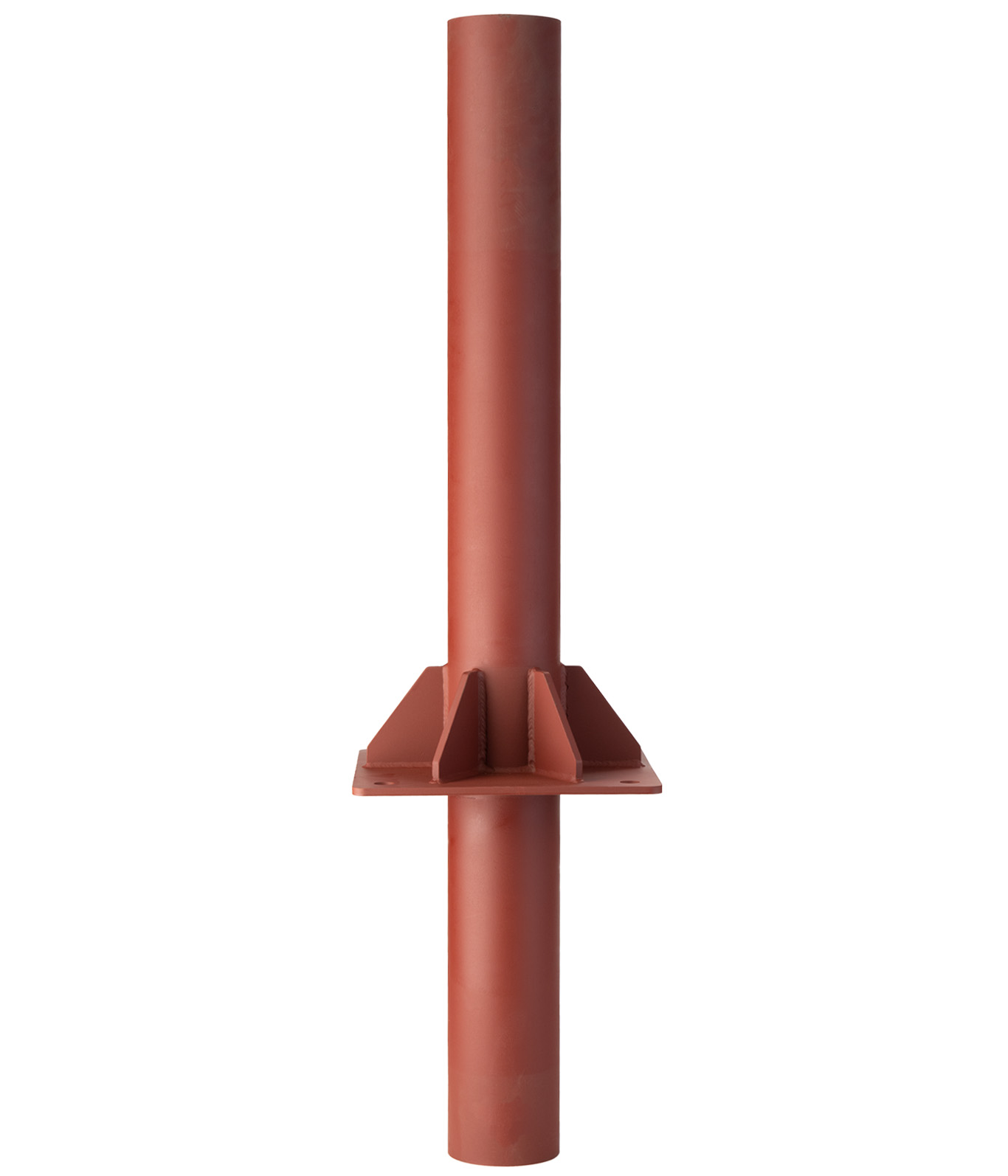

The Halvard C40 Crash-Rated Bollard is engineered to keep pedestrians and buildings safe. It can stop smaller vehicles from entering an area. It is certified to meet the ASTM F2656-20 SC40 P1 standard in American testing facilities. One of these bollards can stop a 2430-pound vehicle travelling at 40 mph with less than 3.3 feet of penetration.
Weight (lbs) | 185 |
---|
Function | Fixed Crash-Rated Bollard |
---|
Height (in) | 36 |
---|
Body Diameter (in) | 6-5/8 |
---|
Base Diameter (in) | 6-5/8 |
---|
Material | Steel |
---|
If you require more info, please call Traffic Protectors at 877.392.5766 or email info@trafficprotectors.com
SECTION 11 12 43
VEHICLE BARRIER SYSTEMS
GENERAL
- SUMMARY
- Section Includes:
- Crash-rated bollards.
- [_________________]
- Related Requirements:
- [Section 03 30 00: Cast-in-Place Concrete]
- [Section 28 13 63 - Access Control Vehicle Identification System]
- [_________________]
- REFERENCE STANDARDS
- Department of Defense (DoD) approved and listed on Anti-Ram Vehicle Barrier List
- SUBMITTALS
- Manufacturer’s Product Data
- Comply with Section [01 33 00 – Submittal Procedures.] [_________.]
- Product Data: Provide for each type of bollard, component, finish, and accessory specified.
- Maintenance Data: Submit manufacturer’s field touch-up, cleaning, and maintenance instructions.
- Warranty Documentation: Submit sample of manufacturer’s warranty.
- Setting Drawings: Show embedded items and cutouts required for work specified by other Sections.
- QUALITY ASSURANCE
- Comply with Section [01 43 00 – Quality Assurance.] [_________.]
- DELIVERY, STORAGE, AND HANDLING
- Comply with Section [01 66 00 – Product Storage and Handling Requirements.] [_________.]
- Protect bollards and accessories during delivery, storage, and handling.
- WARRANTY
- Comply with Section [01 78 36 – Warranties.] [_________.]
PRODUCTS
- MANUFACTURERS
- Manufacturer: Reliance Foundry Co. Ltd.
- Phone: 604-547-0460 or 1-877-789-3245
- Fax: 604-590-8875
- Website: https://www.reliance-foundry.com/bollard
- Email: info@reliance-foundry.com
- Substitutions: [Comply with provisions of [Section 01 25 00 "Substitution Procedures"] [_________] for substitution procedures.] [Not allowed.]
- CRASH-RATED BOLLARDS
- Crash-rated bollard [Designer’s Designation]:
- Model: Reliance Foundry; R-1040-C40.
- Height: 66 in (167.6 cm)
- Height Above Grade: 36 in (91.4 cm)
- Diameter: 6-5/8 in (16.8 cm)
- Weight: 185 lbs (84 kg)
- Design: SC40 P1 ASTM crash-rated bollard.
- Material: Steel.
- Country of Origin: Vietnam
- Finish: Primed Red, Galvanized.
- Installation:
- Concrete Embedded
EXECUTION
- EXAMINATION
- Examine paving or other substrates for compliance with manufacturer’s requirements for placement and location of embedded items, condition of substrate, and other conditions affecting installation of bollards.
- Proceed with installation only after unsatisfactory conditions have been corrected.
- INSTALLATION
- General: Comply with manufacturer’s installation instructions and setting drawings.
- Do not install damaged, cracked, chipped, deformed, or marred bollards. Field touch-up minor imperfections in accordance with manufacturer’s instructions. Replace bollards that cannot be field repaired.
- CLEANING & PROTECTION
Normal cleaning may be done with clean water and a soft cloth. Detailed cleaning and inspection instructions are available at www.reliance-foundry.com/bollard/maintenance-bollards.
- Protect bollards against damage.
- Immediately prior to Substantial Completion, clean bollards in accordance with manufacturer’s instructions to remove dust, dirt, adhesives, and other foreign materials.
- Touch up damaged finishes according to manufacturer’s instructions.
- CLOSEOUT ACTIVITIES
- Provide executed warranty.
END OF SECTION
